6-Wells static confiner – CSOW 610

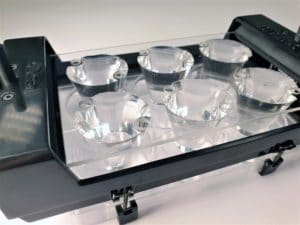

6 wells confiner
6 wells confiner

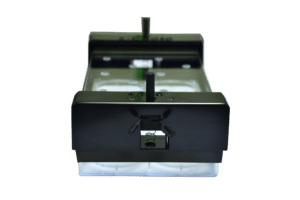

The CSOW 610 – static confiner is a portable device that allows confining cells within two surfaces with nanometer precision. The space between the two surfaces is controlled by using micro PDMS pillars. The micro pillars are fabricated in a glass slide, which is attached to a PDMS piston.
The CSOW 610 is the device that controls the position of the pistons and it is compatible with several brands of 6-well plates.  In the end of the confinement experiments, the cells can be retrieved enabling further biochemical studies. The user decides when and where to confine the cells as it is not necessary to plug it to any other device.



> User friendly and convenient

It is easy to assemble and was engineered to fit with several brands of 6-well plates



> Multiple confinement experiments simultaneously

Enables the study of different cells or to apply different confinement conditions at the same time



> Adaptable with your microscope

It was designed to fit in your microscope

> THE STATIC CELL CONFINER CSOW 610 IS COMPOSED BY:

1 x CSOW 610

12 x Confinement Piston in PDMS

12 x Confinement Slides – 16 mm (diameter) glass slides/cover slips with micro-structures in PDMS (pillars) that enable the confinement

Available confinement heights – from 1, 2, 3, … up to 20 um (you can choose up to 3 heights to integrate your kit)



> IF YOU WANT TO MAKE YOUR SLIDES ADHESIVE TO YOUR CELLS OR NOT (OPTIONAL):

Aliquots of extracellular matrix protein for cell adhesion (for example, fibronectin) in the right buffer solution

Aliquots of anti-adhesive molecule (poly-ethylene glycol) ready to bind on the slides



If this device does not fit with your constraints, get in touch with us! We can personalize it for you!

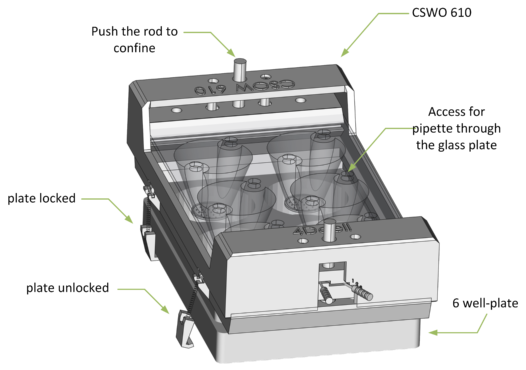

> SCHEME OF THE CSOW 610

CSOW610_5

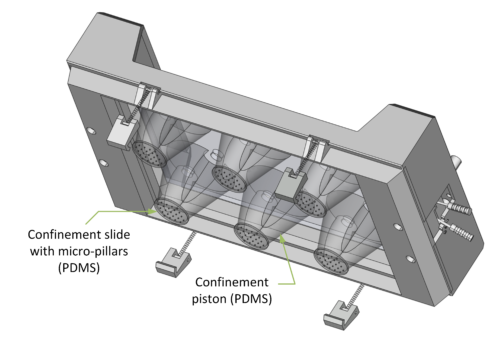

CSOW610

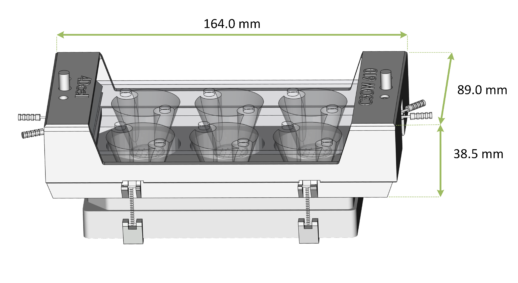

Overall dimensions of the CSOW 610

CSOW610_3

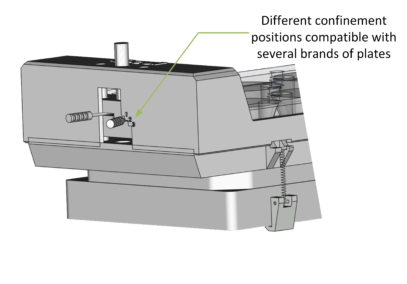

The CSWO is compatible with different brands of 6-well plates (Cellvis, Falcon (glass and plastic bottom), Nunc, TPP)

CSOW610_2

> CANCER

Migration of metastatic cells

Cell contractility in mestastasis

DNA DSB repair (mechanically induced)

Genomic instability (cell division)

Separated co-culture



> IMMUNOLOGY

Migration of immune cells

Imaging of non-adhesive cells



> ORGAN PHYSIOLOGY

Migration of cancer cells

Cell differenciation with stiffness control

Wound healing

Separeted co-culture

Cell compression response



> RARE DISEASES

Cell nucleus integrity



> AGING

Cell nucleus integrity

Autophagy related diseases



> OBSERVATION OPTIMIZATION

Imaging of non-adhesive cells

Planar imaging of organelles



> FUNDAMENTAL RESEARCH

Cell volume (cell cycle)

Cell stretching response

Video of HeLa cells under confinement using a 4Dcell confiner, going from initial state to extremely confined.

Video of cells dividing under confinement using a 4Dcell confiner

Example of mammalian cells with before and after confinement images with fluorescent proteins

Confinement and Low Adhesion Induce Fast Amoeboid Migration of Slow Mesenchymal Cells
Y.-J. Liu, M. Piel, Cell, et al., 2015 160(4), 659-672



Actin flows induce a universal coupling between cell speed and cell persistence
P. Maiuri, R. Voituriez, et al., Cell, 2015 161(2), 374–386



Geometric friction directs cell migration
M. Le Berre, M. Piel, et al., Physical Review Letter 2013 111, 198101



Mitotic rounding alters cell geometry to ensure efficient spindle assembly
O. M. Lancaster, B. Baum, et al., Developmental Cell, 2013 25(3), 270-283



Fine Control of Nuclear Confinement Identifies a Threshold Deformation leading to Lamina Rupture and Induction of Specific Genes
M. Le Berre, J. Aubertin, M. Piel, Integrative Biology, 2012 4 (11), 1406-1414



Exploring the Function of Cell Shape and Size during Mitosis
C. Cadart, H. K. Matthews, et al., Developmental Cell, 2014 29(2), 159-169



Methods for Two-Dimensional Cell Confinement
M. Le Berre, M. Piel, et al., 2014, Micropatterning in Cell Biology Part C, Methods in cell biology, 121, 213-29
