COVERSLIPS WITH MICROPILLARS

Measure the force applied by your cells

4Dcell offers 10 mm coverslips with microfabricated PDMS micropillars for cell culture and force assessment.

The different pillar designs and arrangements fit a wide variety of applications, as traction force microscopy, contractility force and durotaxis.

Force assessment is done by measuring the deflection of the PDMS pillars in response to the forces applied by cells.



> READY TO USE

Plate your cells directly



> A WIDE RANGE OF DESIGNS AVAILABLE

Substrates with high and low density of pillars available and different aspect ratios



> COMPATIBLE WITH HIGH RESOLUTION MICROSCOPY

Easy observation of cells and the effect on the micropillars deflection

HOW TO HANDLE YOUR COVERSLIPS WITH MICROPILLARS

4DCELL COVERSLIPS WITH PDMS MICROPILLARS



10 mm coverslips with PDMS micropillars (approx. thickness 170 μm)

Compatible with high-resolution optical microscopy systems

Provided in individual petri dishes



4DCELL COVERSLIPS WITH PDMS MICROPILLARS STANDARD CATALOG

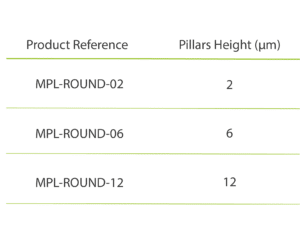

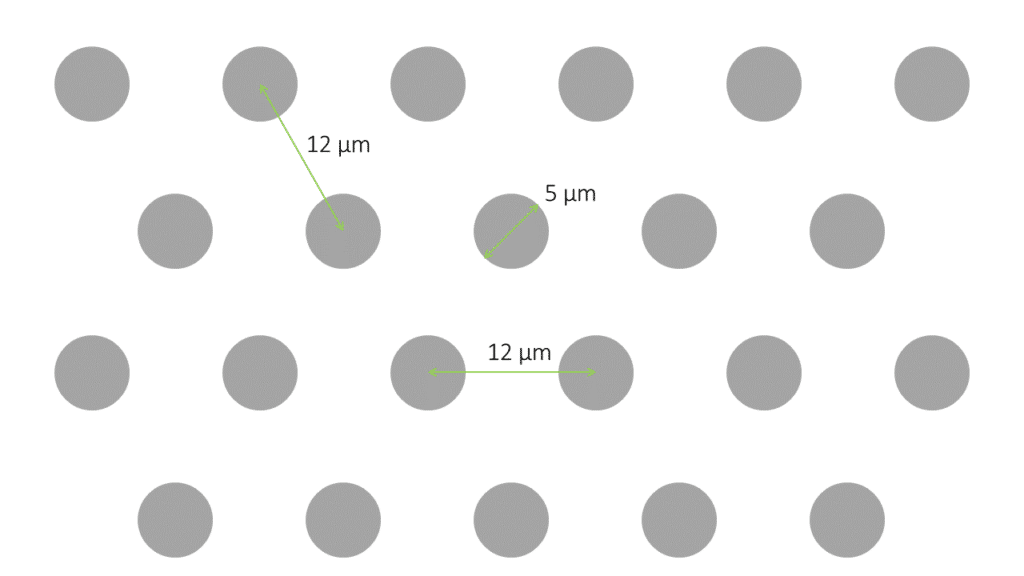

Coverslip with Round Pillars

Design: 5 µm of diameter; 12 µm of distance from center to center

Three heights available: 2 µm, 6 µm and 12 µm

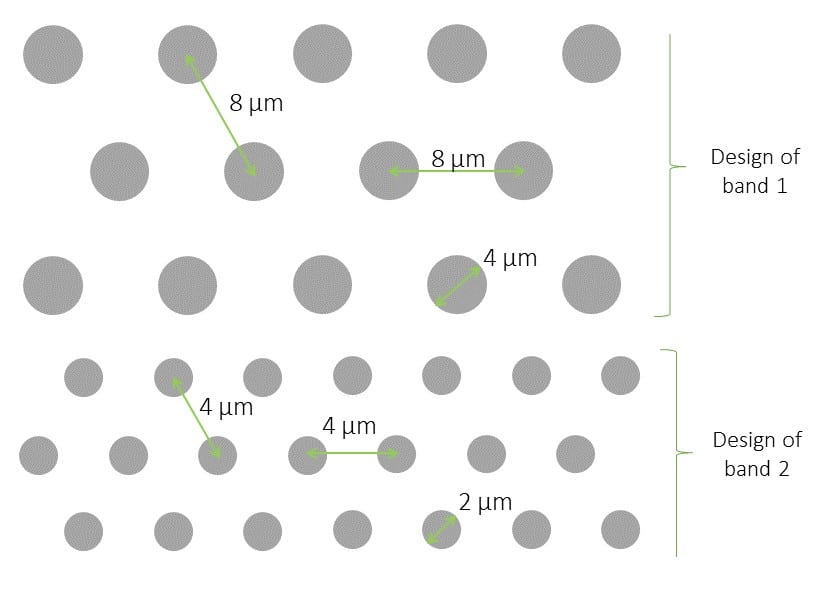

Coverslip with Bands of Pillars

In the same coverslip there are two micropillars sizes spread in the form of bands (1 mm thickness)

Design band 1: 4 µm of diameter; 8 µm of distance from center to center

Design band 2: 2 µm of diameter; 4 µm of distance from center to center

Two heights available: 2 µm and 6 µm

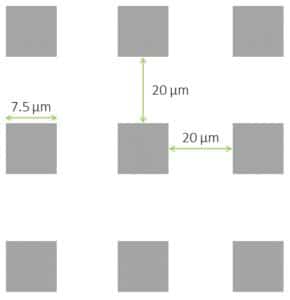

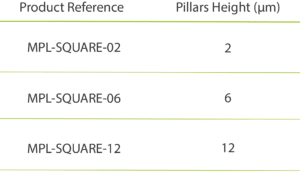

Coverslip with Square Pillars

Design: 7.5 µm of width;  20 µm of distance between pillars

Three heights available: 2 µm, 6 µm and 12 µm

ADDITIONAL INFORMATION



Please be aware that 4Dcell does not provide an analysis software

If these devices do not meet your needs, get in touch with us! We can personalize them for you.

CANCER



> Cell shape standardization



ORGAN PHYSIOLOGY



> Migration of somatic and cancer cells

> Cell shape standardization

> Cardiomyocyte beating properties



FUNDAMENTAL RESEARCH



> Durotaxis

> Traction Force Microscopy

> Contractility Force assessment
