SmartGELS®

Polyacrylamide hydrogel-coated coverslips

24 mm coverslip with gel

Ready-to-use substrates with controlled stiffness for cell culture and mechanobiology.

SmartGel® coverslips are 24 mm glass coverslips coated with polyacrylamide hydrogels designed to reproduce selected mechanical properties of the cellular microenvironment.

​

Available in different stiffnesses and pre-coated with fibronectin, they enable researchers to investigate how substrate mechanics influence cell adhesion, morphology, migration and other cellular responses.

​

Their optical transparency makes them compatible with high-resolution microscopy, while the ready-to-use format eliminates the need for in-house hydrogel fabrication.

Cells on hydrogel

WHY CHOOSE SMARTGEL HYDROGEL COVERSLIPS?

Controlled substrate stiffness

Choose a hydrogel stiffness suited to your experimental design to investigate how substrate mechanics affect cell behavior.

Ready for cell culture

SmartGel coverslips are supplied pre-coated with fibronectin. After the recommended rinsing and equilibration steps, cells can be seeded directly onto the hydrogel surface.

Compatible with optical microscopy

The transparent hydrogel and glass support enable microscopic observation of cells, including high-resolution imaging with a compatible setup.

WHY DOES SUBSTRATE STIFFNESS MATTER IN CELL CULTURE?

Cells respond not only to biochemical signals but also to the mechanical properties of their surrounding environment.

​

Conventional glass and plastic culture surfaces are substantially stiffer than many biological tissues. This difference can influence cell spreading, cytoskeletal organization, adhesion and mechanotransduction.

​

Polyacrylamide hydrogels provide a way to control substrate stiffness independently of the underlying glass support.

​

By culturing cells on hydrogels with different elastic properties, researchers can investigate stiffness-dependent cellular responses under defined experimental conditions.

TECHNICAL SPECIFICATIONS

Specifications
Smartgel coverslips
Hydrogel material
Polyacrylamide
Substrate
Round glass coverslip
Standard diameter
24 mm
Glass thickness
Approximately 170 µm
Substrate stiffness
4–80 kPa
Surface coating
Fibronectin
Surface geometry
Flat hydrogel
Optical properties
Transparent, compatible with high-resolution optical microscopy
Packaging
Individually packaged in an aqueous solution
Perfusion chambers
Compatible with suitable chambers
Customization
Alternative coverslip dimensions, Petri dishes and multiwell plates upon request

Available hydrogel stiffnesses and product references

Product Reference
Stiffness (KPa)
GCF001
4
GCF002
6
GCF003
10
GCF004
15
GCF005
20
GCF006
30
GCF007
50
GCF008
80

APPLICATIONS IN MECHANOBIOLOGY & CELL BIOLOGY

SmartGel hydrogel-coated coverslips provide controlled mechanical substrates for investigating how cells respond to changes in their extracellular environment.

​

Research applications include:

​

  • Cell adhesion and spreading: Investigate changes in cell attachment, morphology and spreading across different substrate stiffnesses.

  • Cell mechanotransduction: Study how mechanical cues influence cytoskeletal organization and associated cellular signaling.

  • Cell migration: Examine the influence of substrate stiffness on cellular motility.

  • Cell differentiation: Explore the contribution of substrate mechanics to differentiation and cellular phenotype in suitable experimental models.

  • Disease-related mechanical environments: Compare cellular responses to substrate stiffness conditions selected to model aspects of normal or altered tissue mechanics.

​

The hydrogel stiffness and biological model should be selected according to the specific experimental question.

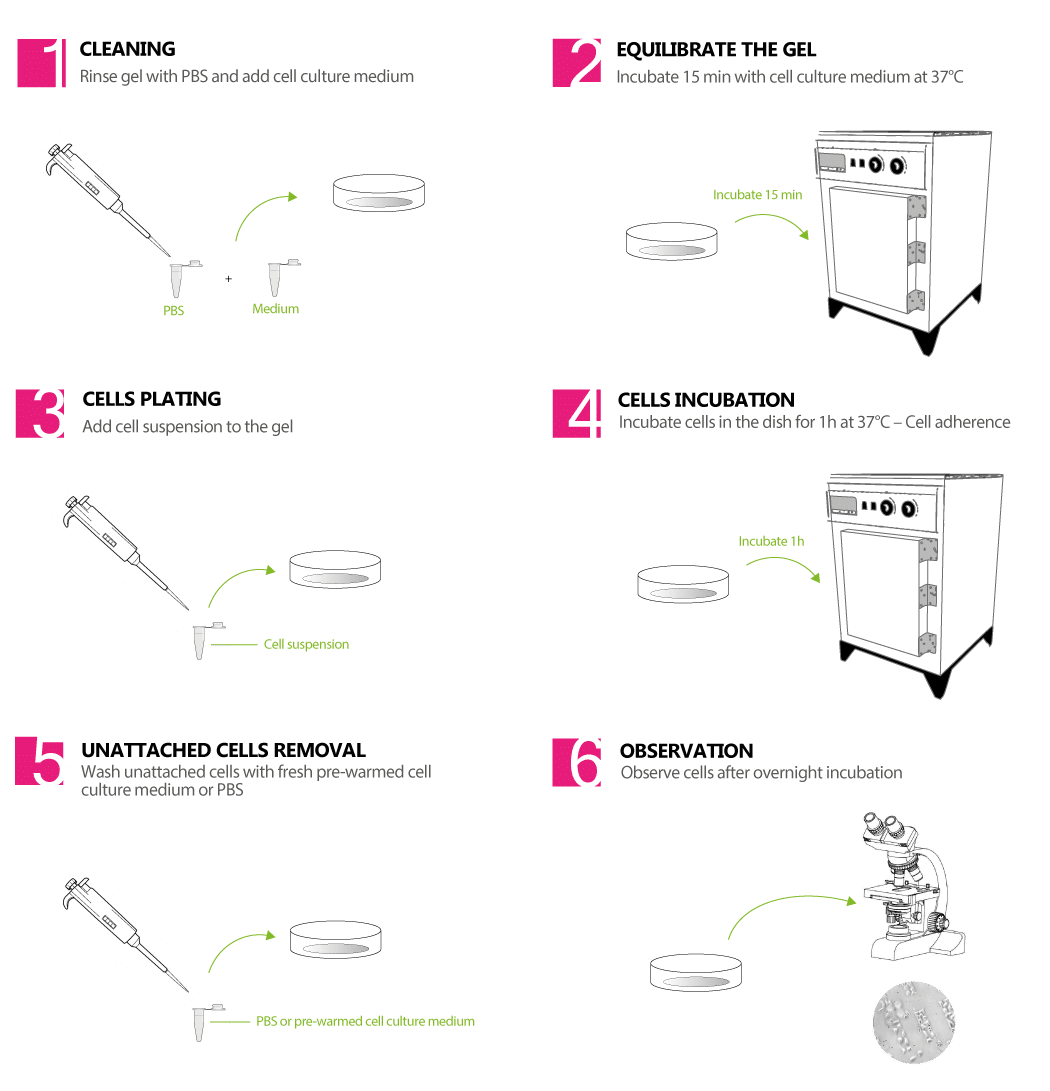

HOW TO USE SMARTGEL HYDROGEL-COATED COVERSLIPS

SmartGel coverslips are supplied ready for cell culture. Follow these six steps to prepare the hydrogel surface, seed your cells and perform microscopic observations.

Step 1 — Cleaning

Rinse the hydrogel-coated coverslip twice with PBS and add pre-warmed cell culture medium.

Step 2 — Gel equilibration

Incubate the coverslip with culture medium for 15 minutes at 37°C to equilibrate the hydrogel before cell seeding.

Step 3 — Cell plating

Gently dispense the cell suspension onto the hydrogel surface, ensuring even distribution. Optimize the seeding density according to your cell type and experimental requirements.

Step 4 — Cell incubation

Incubate the seeded coverslip for at least 1 hour at 37°C and 5% CO₂ to allow cell adhesion. The required attachment time may vary depending on the cell type.

Step 5 — Removal of unattached cells

Carefully wash away unattached cells using pre-warmed culture medium or sterile PBS, avoiding disruption of adherent cells.

Step 6 — Observation

​​Add fresh pre-warmed culture medium, incubate the cells overnight and proceed with microscopic observation and analysis.

​​Important: Keep the hydrogel hydrated throughout the procedure.

For detailed handling instructions and cell seeding recommendations, refer to the SmartGel Coverslip User Guide.

Coverslip coated with gel protocol

CUSTOM HYDROGEL SUBSTRATES FOR YOUR EXPERIMENTAL NEEDS

In addition to standard 24 mm coverslips, 4Dcell can adapt hydrogel-coated substrates to alternative coverslip dimensions, Petri dishes and multiwell plate formats.

Custom configurations can be discussed according to the required substrate geometry, stiffness and experimental workflow.

​

Looking for topographical control as well?

​

For experiments requiring both substrate stiffness and defined surface topography, 4Dcell also offers SmartGel microstructured coverslips featuring structures such as microgrooves and microwells.

These substrates enable researchers to investigate the combined influence of mechanical properties and geometrical constraints on cellular behavior.

FREQUENTLY ASKED QUESTIONS

FIND THE RIGHT HYDROGEL STIFFNESS FOR YOUR CELL CULTURE MODEL

Looking for a specific substrate stiffness, culture format or hydrogel configuration?​

Our team can help you identify a SmartGel solution suited to your cell type, research objectives and experimental workflow.

​

Contact 4Dcell to discuss your requirements or request a quotation.
